| MOQ: | 1 UNIT |
| 가격: | Negotation |
| standard packaging: | 판지로 포장하는 |
| payment method: | T/T, 웨스턴 유니온 |
| Supply Capacity: | 1000 unit per month |

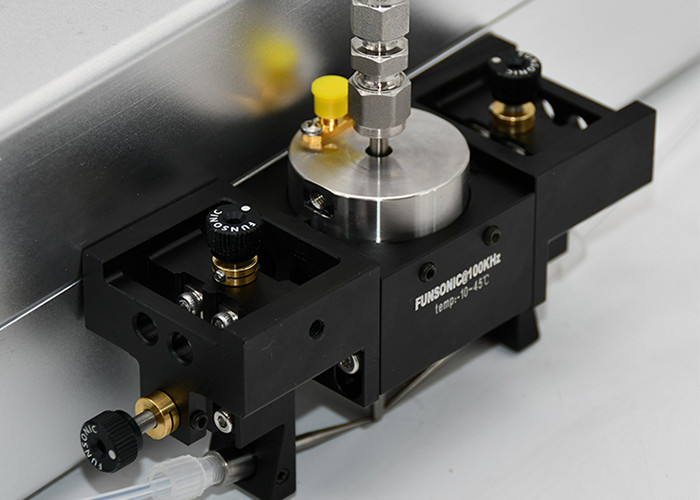

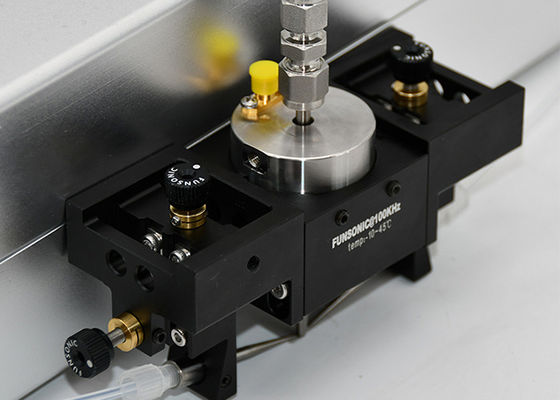

Line Spray Focused Ultrasonic Atomizer Nozzle For Antiplatelet Drug Coating
Description:

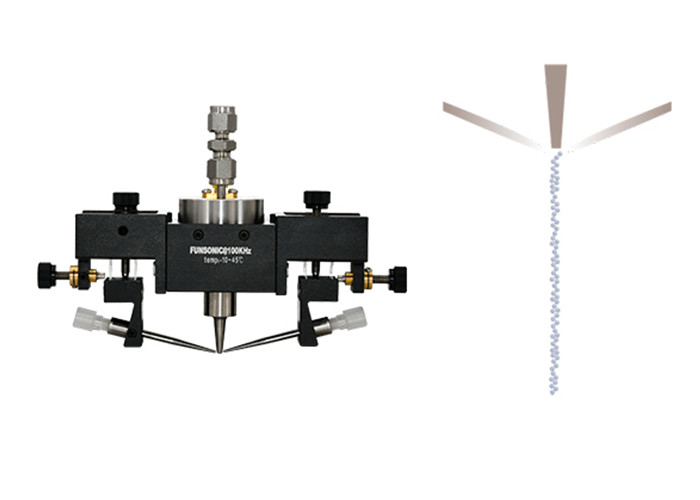

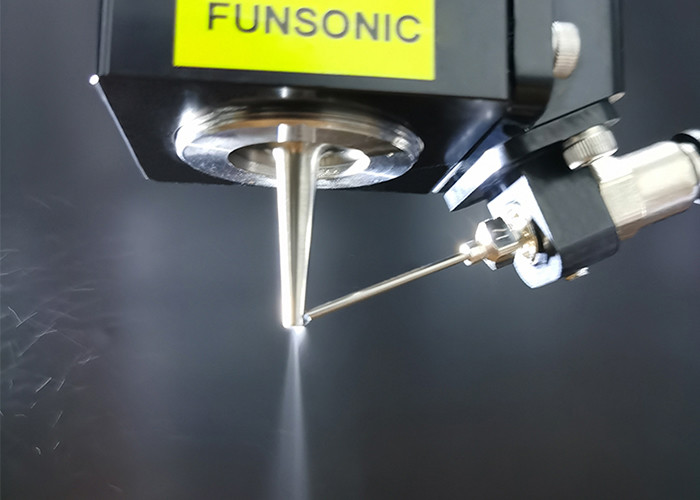

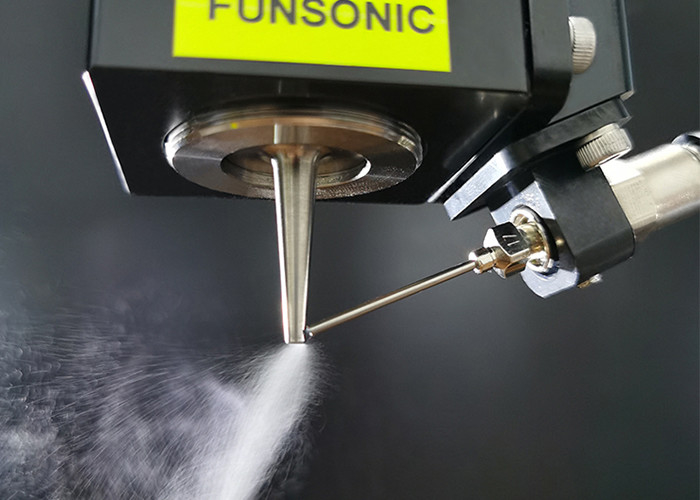

The line spray focused antiplatelet drug spraying ultrasonic atomizer nozzle is combined with low-pressure air/gas to produce a soft, highly focused small droplet beam. The liquid is delivered to the atomization surface of the nozzle through an isolated hypotube, while the air/gas delivered through the nozzle hole at a fixed low pressure shapes the atomized droplets into a very precise target jet with a diameter of only 0.020 inches (0.5 millimeters).
Each ultrasonic nozzle operates at a specific resonant frequency, which determines the median size of the droplet. The difference in droplet size is very small, and its distribution can be accurately predicted within a certain range through mathematical calculations. For example, a 120 kHz nozzle produces a median droplet size of 18 microns when spraying water. The higher the frequency, the smaller the decrease in median value.
Parameters:
| Model | FSW-1005-L |
| Name | 100Khz Line Ultrasonic Nozzle Atomization |
| Frequency | 100Khz |
| Atomized particle size range(μm) | 15-40 |
| Spray width(mm) | 0.5-2 |
| Spray flow(ml/min) | 0.01-1 |
| Spray height(mm) | 10-20 |
| Liquid viscosity (cps) | <15 |
| Particle size (μm) | <8 |
| Diversion pressure (Mpa) | <0.02 |
| Application | Suitable for Medical balloon, stent, fine wire spraying |
Composition :
1. Balloon catheter: A balloon catheter is a soft, expandable catheter with a balloon at its end. Balloons can be inflated or injected with liquid to create a stable workspace in the target area.
2. Ultrasonic spraying system: The balloon catheter is equipped with an ultrasonic spraying system, including an ultrasonic nozzle, a spraying agent supply system, and a coating transfer system. Ultrasonic nozzles use ultrasonic vibration to atomize liquid spray agents into small particles, which are then sprayed onto the target surface through an airflow.
3. Control system: used to control the operation of the entire equipment and adjust the spraying parameters. The control system usually includes a touch screen interface for users to set spraying parameters, monitor equipment status, and adjust operating modes.
Line Spray Focused Ultrasonic Atomizer Nozzle For Antiplatelet Drug Coating
