항저우 Qianrong 자동화 장비 Co., 주식 회사.
고객을 이기기 위하여 초음파 신청에, 옳다고 믿고 집중하십시오
| Place of Origin: | CHINA |
|---|---|
| 브랜드 이름: | FUNSONIC |
| 인증: | CE |
| Model Number: | FSW-6007-L |
| Minimum Order Quantity: | 1 UNIT |
| 가격: | Negotation |
| Packaging Details: | Packed by carton |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic High Temperature Spray Nozzle | Frequency: | 60Khz |
|---|---|---|---|
| MAX 출력: | 1~15W | Automized Particle Size Range: | 15-40μm |
| 스프레이 흐름: | 0.5-10ml/분 | Liquid viscosity: | <15cps |
| 입자 크기: | <8μm | Application: | suitable for Brackets, balloon conduits, wires, flux for selective welding applications |
| 강조하다: | Ultrasonic Spraying Technology Nebulizer,60K Ultrasonic Spraying Nebulizer,High Temperature Ultrasonic Spraying Nebulizer |
||

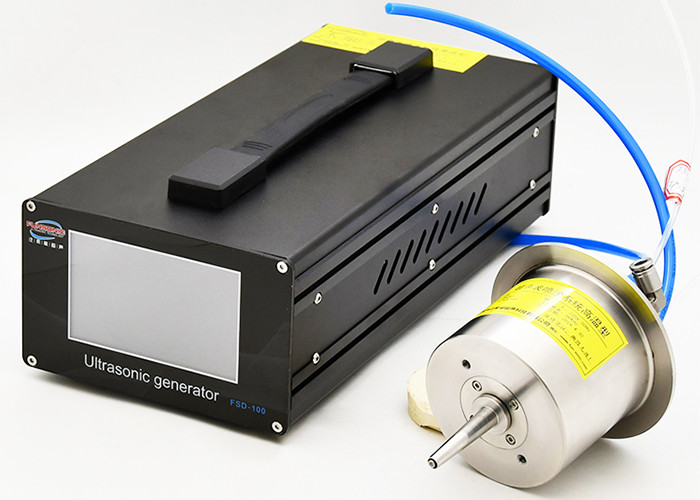

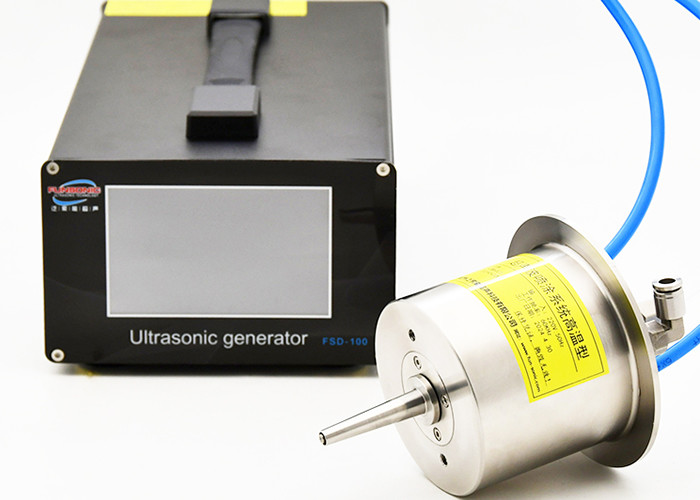

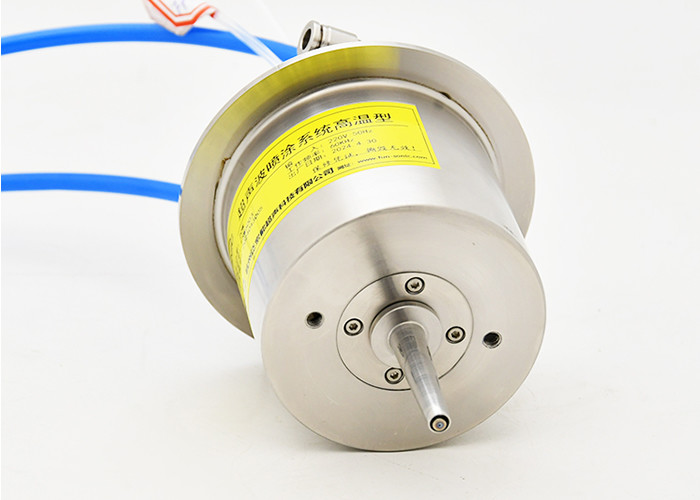

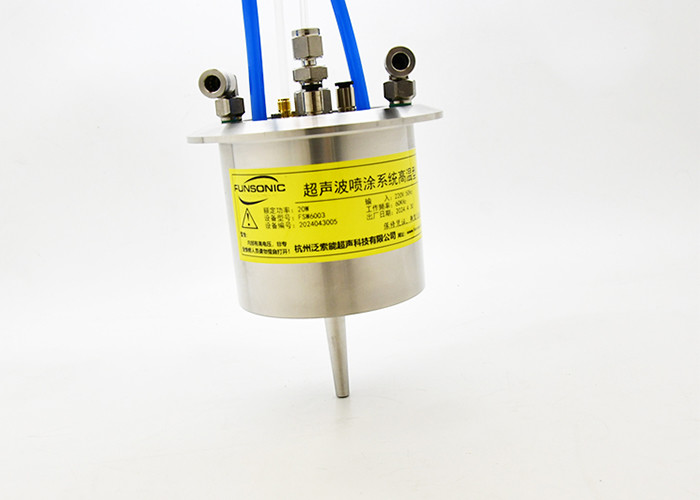

60K High-Temperature Ultrasonic Spraying Technology Nebulizer
Description:
60K high-temperature ultrasonic atomization nozzle is a type of ultrasonic atomization nozzle product specifically designed for high-temperature situations. It uses special high-temperature ceramic piezoelectric components and high-temperature structural materials, enabling it to operate normally in temperature environments up to 600 ° C.
Parameters:
| Type | FSW-6007-L |
| Name | Ultrasonic High Temperature Spray Coating Nozzle |
| Frequency | 60Khz (50/60/120Khz for selection) |
| Atomized particle size range (μm) | 15-40 |
| Spray width(mm) | 1-3 |
| Spray flow(ml/min) | 0.5-10 |
| Spray height(mm) | 2-10 |
| Permissible liquid viscosity(cps) | <15 |
| Allow particle size(μm) | <8 |
| Diversion pressure (Mpa) | <0.01 |
| Application | suitable for Brackets, balloon conduits, wires, flux for selective welding applications |
Application :
1. Metallurgical industry:
Application scenarios: Atomization cooling and humidification in high-temperature furnaces, molten metal pools, and other environments
Advantages: High temperature resistance, improved equipment stability and production efficiency
2. Chemical industry:
Application scenario: reactant/medium spray of high-temperature reaction kettle, distillation tower, etc
Advantages: Corrosion resistance, helps improve reaction control and product quality
3. Glass industry:
Application scenario: atomization cooling in high-temperature areas such as glass furnaces and annealing furnaces
Advantages: Good high-temperature stability, beneficial for optimizing glass manufacturing processes
4. Electronics industry:
Application scenario: Cleaning and disinfection in semiconductor equipment and electronic component manufacturing
Advantages: Low noise, no environmental pollution, helps improve cleanliness
5. Aerospace field:
Application scenario: engine spray cooling, cabin environment disinfection, etc
Advantages: High temperature resistance, vibration and impact resistance, suitable for harsh environmental applications
In general, the 60K high-temperature ultrasonic atomizing nozzle has good application prospects in various industrial fields that need fine atomization control under high temperature environment, and is a very practical high-end spray equipment. Its excellent performance helps to improve the stability and efficiency of related production processes.
60K High-Temperature Ultrasonic Spraying Technology Nebulizer
