생산품명: | 초음파 플라스틱 용접 기계 | 주파수: | 15KHz |
---|---|---|---|
힘: | 4200W | 발전기: | 디지털 전원 공급 |
용접 머리: | 알루미늄 또는 관습은 했습니다 | 애플리케이션: | 다양한 플라스틱 재료 |
패키지: | 나무 상자 | 총 중량: | 500KGS |
하이 라이트: | machine,4200w 초음파 플라스틱 용접 Machine,15khz 초음파 PP 용접기를 용접하는 15 khz 초음파 플라스틱 |

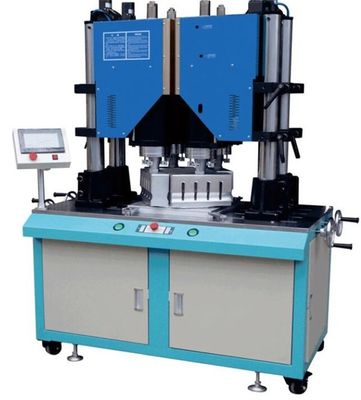

15Khz Ultrasound Polyester PP Media Welder for Water Filter Materials with Sealed Line
Description:
Ultrasonic welding is a fast, clean, and effective assembly process for assembling and processing thermoplastic plastic parts and some synthetic components. At present, the bonding between plastic products, plastic products and metal accessories and the bonding between other non-plastic materials! It replaces solvent viscose, mechanical sturdiness and other bonding processes. It is an advanced assembly technology! Ultrasonic welding not only has the function of connection and assembly, but also has the effect of moisture-proof and waterproof sealing. To
The ultrasonic welding device converts the current 50/60Hz electric frequency into 15KHz or 20KHz high-frequency electric energy through a transistor function device, and supplies it to the converter. The converter converts electrical energy into mechanical vibration energy for ultrasonic waves, and the voltage regulating device is responsible for transmitting the converted mechanical energy to the welding head of the ultrasonic welding machine. The welding head is an acoustic device that directly transmits mechanical vibration energy to the product to be pressed.
Specifications:
Item No | QR-W1542H |
Power | 4200W |
Generator | Digital Power Supply |
Frequency | 15KHZ |
Voltage | 220V or 110V |
welding head | Aluminum or Custom made |
Gross weight | 500Kg |
Parameters:
Frequency | Power | Working Distance | Input Voltage | Air pressure | Language |
15Khz |
2500w/3000w/ 4000w |
75mm/100mm | 220VAC | 0.2-0.8Mpa |
English/ Chinese |
20Khz | 2000w/3000w | 75mm | 220VAC | 0.2-0.8Mpa |
English/ Chinese |
30Khz | 1200w | 75mm | 220VAC | 0.2-0.8Mpa |
English/ Chinese |
35Khz | 1200w | 75mm | 220VAC | 0.2-0.8Mpa |
English/ Chinese |
40Khz | 800w | 75mm | 220VAC | 0.2-0.8Mpa |
English/ Chinese |
Four points for daily maintenance of ultrasonic welding machine:
1. Drain the water in the air filter before leaving get off work every day (operate under pressure when the air source is not turned off) to prevent the accumulated water from being brought into the air valve and cylinder by compressed air and cause damage
Bad;
2. Regularly clean the machine, especially the wiring of the electrical components, so as to avoid the accumulated dust from igniting when encountering humid air;
3. When the machine is out of service for a long time, check whether the electrical connections are well connected and there is no moisture before reopening the ultrasonic welding machine. And turn on the electric control box "manual/automatically"
Turn off to the "manual" position, and the test equipment can be used officially after normal;
4. Grease the cylindrical surface of the guide pillar regularly to reduce wear.
15Khz Ultrasound Polyester PP Media Welder for Water Filter Materials with Sealed Line
